High temperature ANSI 150-300LB JIS 10K 304 316 stainless steel motorized electric actuator V-Type Flanged Ball Valve
Product Overview:

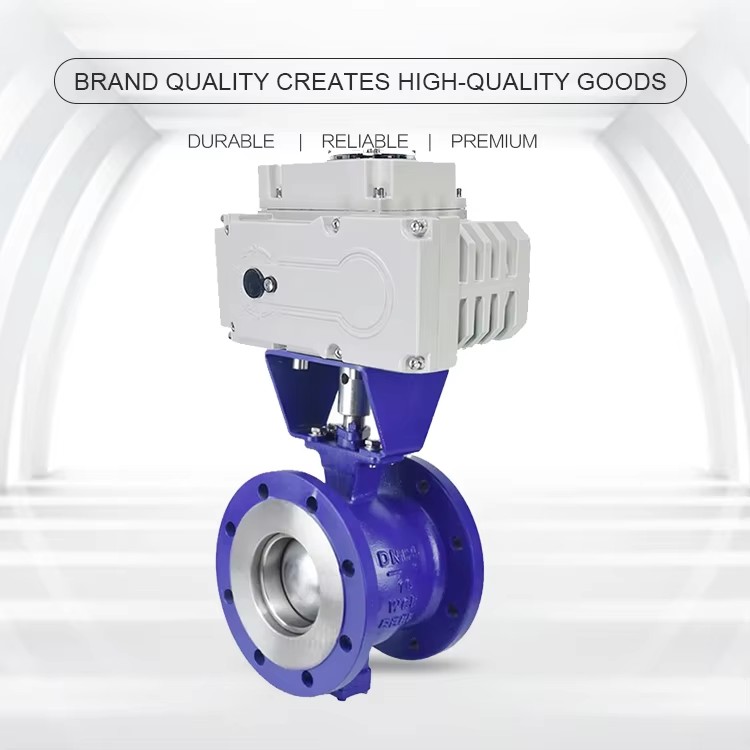

The TAIYI V-Type Flanged Ball Valve is an electric actuator-driven stainless steel ball valve specifically designed for medium and normal temperature media. It adheres to ANSI 150-300LB and JIS 10K standards and is suitable for various media such as water, gas, and oil. With its excellent performance, reliable quality, and wide range of applications, this valve has become an ideal choice for industrial fluid control.
Core Features:
- Premium Material: Made of 304 and 316 stainless steel, it ensures superior corrosion resistance and mechanical strength, guaranteeing stable operation under various harsh conditions.
- Wide Applicability: The valve supports ANSI CLASS 150-900, 10K-20K, and PN16-PN64 rated pressures, suitable for pipe diameters ranging from DN8-DN100 (1/4″-4″), meeting the needs of different industrial scenarios.
- Safety and Reliability: The V-type ball valve structure ensures stable media flow, reducing fluid resistance and pressure loss. The electric actuator provides stable and accurate control, ensuring the reliability and safety of valve opening and closing.
- Customized Services: OEM and ODM customization services are available, catering to specific customer needs.
- Ease of Operation: Remote control is achieved through the electric actuator, simplifying operation, saving labor costs, and improving production efficiency.

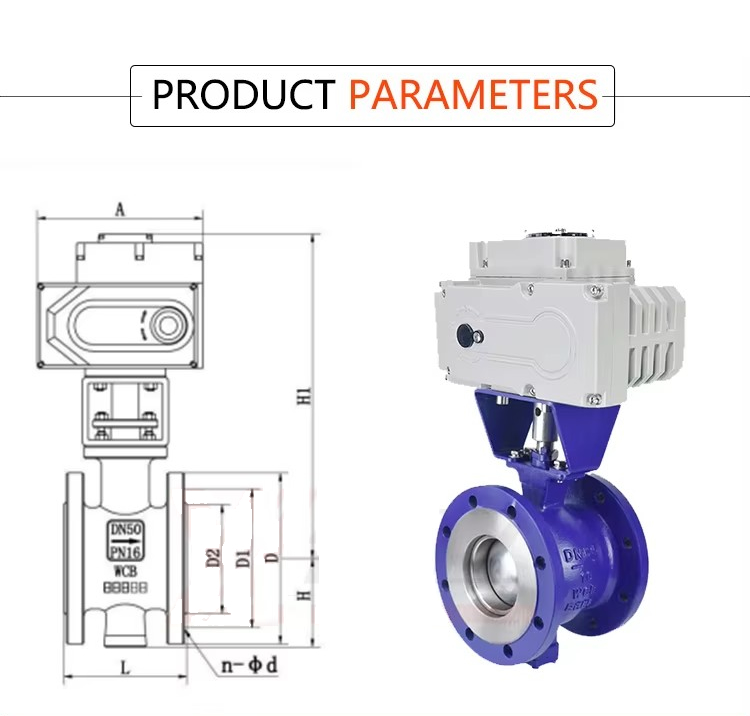

Technical Specifications:
- Model: D016001003019D-01
- Brand: TAIYI
- Temperature Range: -20°C ~ +260°C
- Material: Stainless Steel (304/316)
- Connection Type: Flanged Connection
- Structure Type: Floating Ball Valve
- Application: Industrial Flanged Ball Valves
- Features: Safe and Durable
- Warranty Period: 1 Year
Packaging and Delivery:
- Selling Unit: Single Item
- Package Size: 20X20X20 cm
- Gross Weight: 4.000 kg
With its excellent performance, reliable quality, and wide range of applications, the TAIYI V-Type Flanged Ball Valve provides powerful support for your industrial fluid control. Whether it’s technical consultation, product selection, or after-sales service, we are committed to providing you with comprehensive support.
A ball valve is a form of quarter-turn valve which uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball’s hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve’s status. The shut position 1/4 turn could be in either CW or CCW direction.
