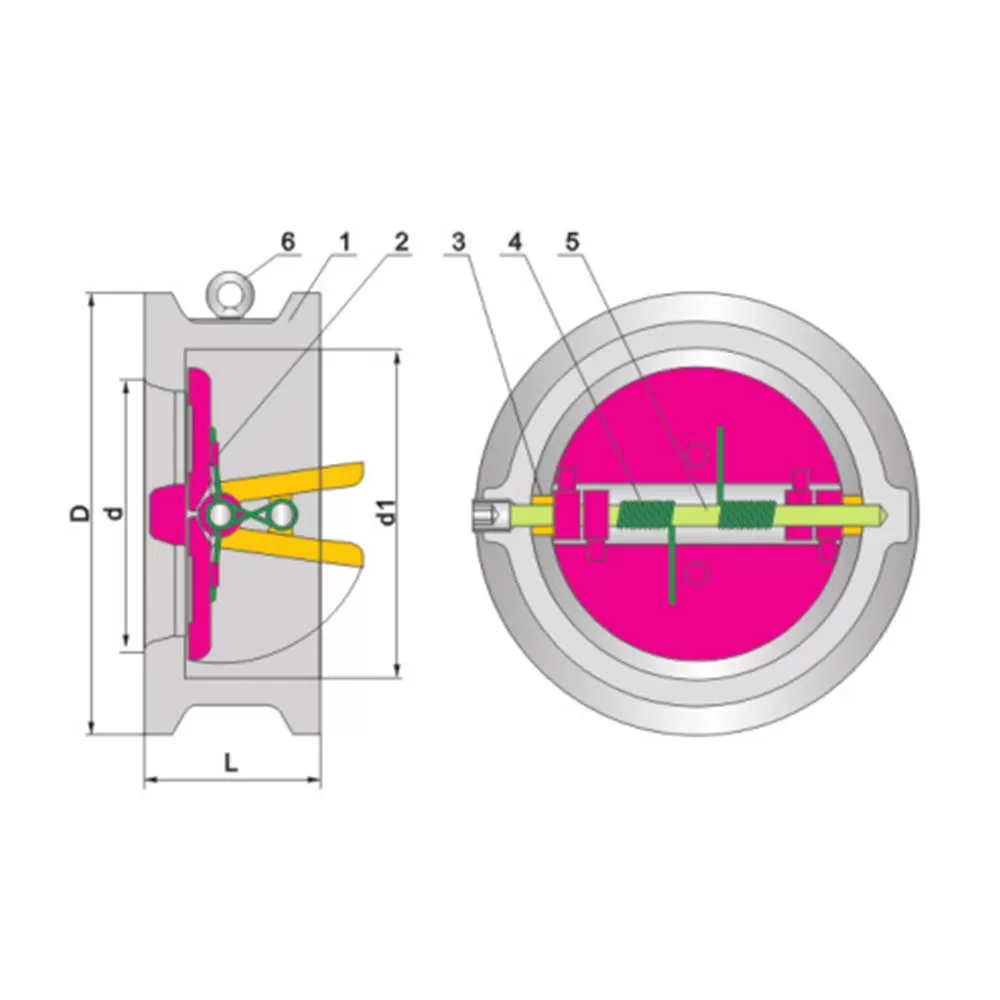

Cast Steel CF8M 8” 150LB Lug End Dual Plate Check Valve
Specification
| Valve material | carbon steel, stainless steel, alloy steel, etc |
| Valve size | 2 “~48” (DN 50~DN 1200) |
| Pressure range | Class150~2500 (PN 16 to PN 420) |
| Applicable temperature | -29°C~ + 560°C |
| Link mode | pair of clip type, flange type, lug type |
| Design criteria | API 594, ASME B16.34, API 6D |
| Test criteria | API 598, EN12266-1, and ISO 5208 |
| Face to face criteria | API 594, API 6D, E N 558-1 |
Nominal Diameter: 8-inch (DN200)
Pore size: full pore size
Rated pressure: 150 LB
Material: CF8M
Operation: N/A
Design criteria: API594 / API602 / API6D
Test/Inspection: API598
Terminal method: long ear
Standard: ASME / ANSI B 16.5
Complete flange: none
