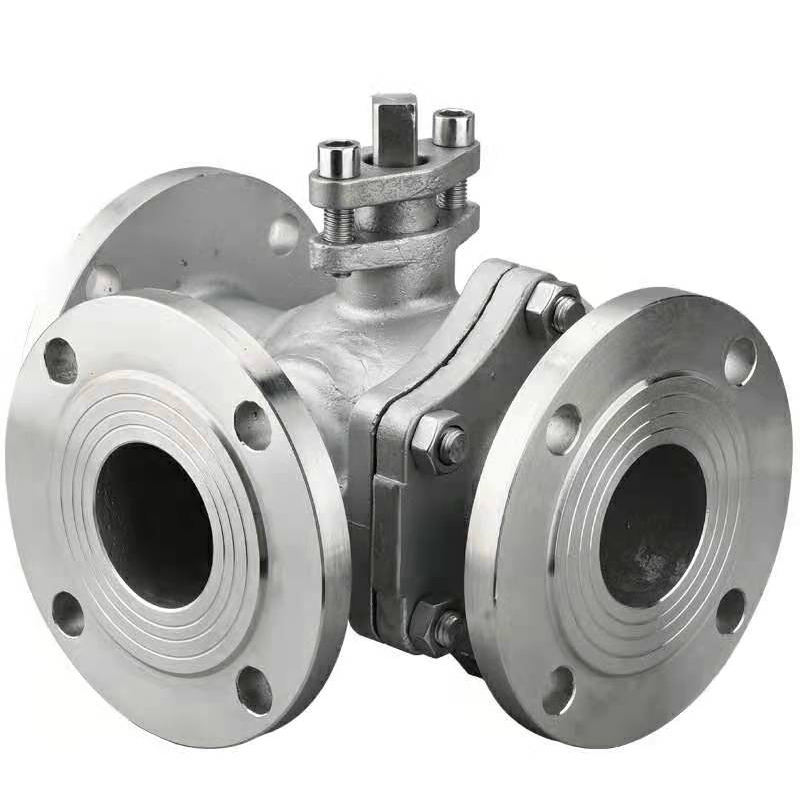

Ansi150 full port 3 inch stainless steel 304 L type 150LB class150 handle ptfe seal carbon steel T type 3 way falnge ball valve
Product Overview:
We present to you the Ansi150 Full Port 3 Inch Stainless Steel 304 L-Type 150LB Class 150 Handle PTFE Seal Carbon Steel T-Type 3-Way Flange Ball Valve, a high-performance and multifunctional fluid control device. It is crafted from superior stainless steel 304 material, ensuring long-term stable operation in harsh environments.
Key Features:
- Excellent Material: The valve body is made of stainless steel 304, ensuring stable operation in adverse conditions.
- Full Port Design: The full port design allows unobstructed media flow, reducing pressure loss and improving fluid transmission efficiency.
- PTFE Sealing: Using PTFE as the sealing material ensures excellent sealing performance and wear resistance, preventing leakage when the valve is closed.
- 3-Way T/L Type Structure: The 3-way T/L type flange ball valve allows flexible control of fluid flow in three directions, meeting the needs of complex piping systems.
- Manual Operation: Equipped with a manual operation handle, it offers easy and quick operation, suitable for various applications.
- Wide Applicability: Suitable for various media such as gas, water, and oil, it can withstand high temperature and high pressure environments, making it applicable to various industrial fields.

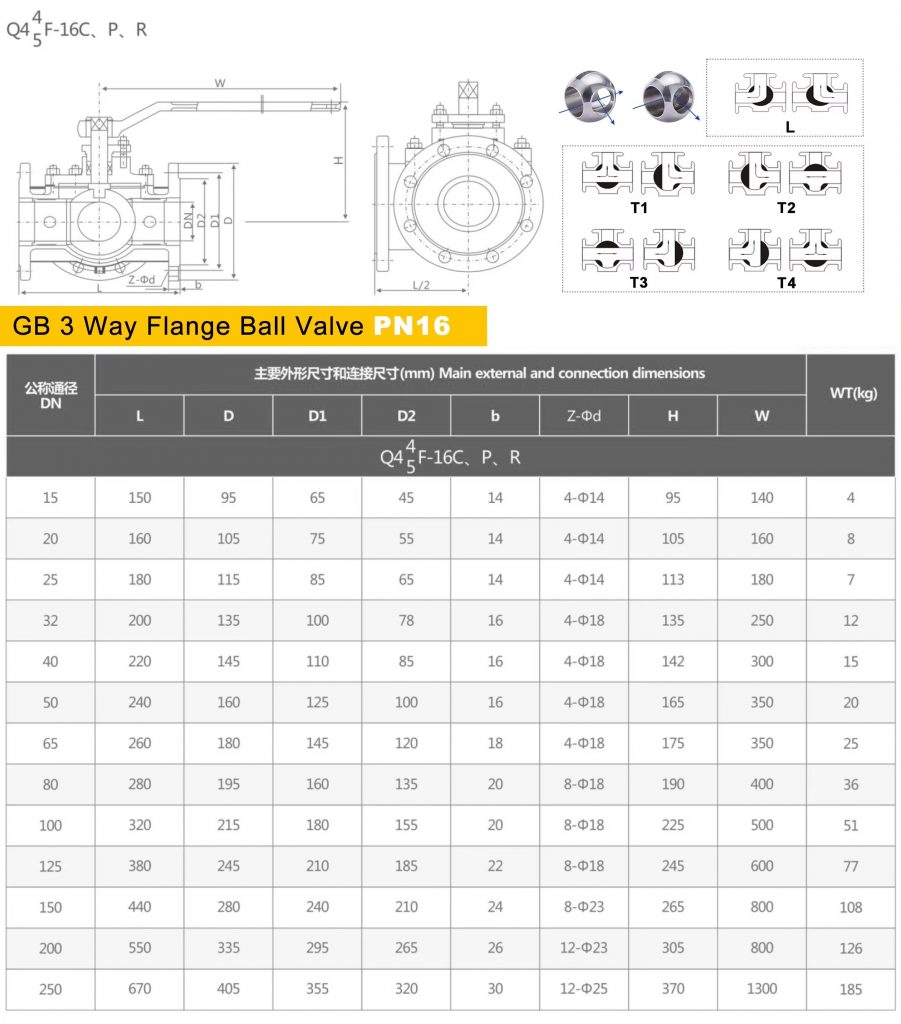

Technical Specifications:
- Model: MB03, MB04
- Nominal Diameter: DN15-DN200
- Working Pressure: pn16, pn25, pn64, pn100, 150LB, 300LB
- Operating Temperature: -20°C to 200°C
- Connection Type: Flange Connection
- Rotation Angle: 90°
- Sealing Material: PTFE
- Warranty Period: 1 Year
Packaging and Delivery:
- Package Size: 20X20X20 cm
- Gross Weight: 40.000 kg
- Port of Shipment: Guangzhou/Shenzhen
Customized Service:
We provide OEM and ODM customization services, including customized valve sizes, materials, connection types, etc., to meet your specific needs.
Conclusion:
The Ansi150 Full Port 3 Inch Stainless Steel 304 L-Type 150LB Class 150 Handle PTFE Seal Carbon Steel T-Type 3-Way Flange Ball Valve is a high-performance and multifunctional fluid control device with excellent corrosion resistance and high-temperature resistance. We are committed to providing you with high-quality valve products and excellent after-sales service to meet your various needs.
