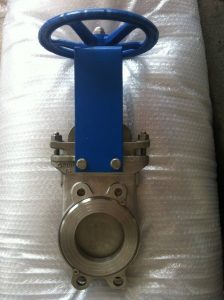

Knife Gate Valve
Specification
| Size Range | 1“–10” |
| Temperature Range | ‘-29 to 180 degree |
| Pressure Ratings | 2 – 24″ (50 – 600mm) 150psi 30 – 36″ (750 – 1200mm) 100psi |
| Disc Materials | Stainless Steel,Hastelloy C, Monel,etc |
| Design Standard | MSS SP-81，ASME B16.34 |
| Testing Standard | MSS SP-151 |
| Face to Face | MSS SP-81 |
| Applications | Power, Mining, Pulp & Paper, Cement, Carbon Black, Chemical,Wastewater |
| Body Materials | Cast Iron, Ductile Iron, Carbon Steel,Stainless Steel,Nickel Aluminum Bronze,etc |
| Shutoff Rating | Bidirectional or Unidirectional,Soft seated (zero Leak)metal seated(MSS SP-151) |
| Flange Drilling | ASME B16.5、EN 1092、GOST 33259 |
| Certifications | CE、EAC、SIL3、ISO 19001 |
| Operation | Wench, Worm Gear, Electric, Pneumatic,etc |
High quality casting disc
Accurate processing the disc to ensure excellent sealing.Many big size disc we also have them in stock to ensure short delivery time
