Double Offset Butterfly Valve

Product Overview
The double-eccentric flanged butterfly valve adopts a double-eccentric structure where the valve stem and the centerline of the valve seat are not aligned with the centerline of the butterfly plate, creating an eccentric design. This design significantly reduces friction between the valve disc and the valve seat, enhancing the valve’s service life and sealing performance. Meanwhile, the use of a flanged connection ensures a reliable connection between the valve and the piping, making it suitable for high-pressure and large-diameter piping systems.

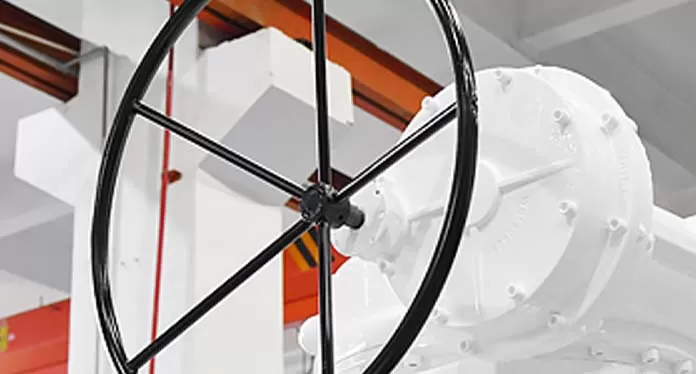

Gear box
Good quality Gear box were assemblied to our TIANYU valves, without special requirements about the actuator, Above 6″ will be adopted with Gear box
Integral Yoke
Yoke and body casting in whole,this new design is very beautiful and can avoid the leakage on yoke.

The double-eccentric wafer-type butterfly valve features a double-eccentric design, where the centerline of the stem and the seat does not align with the centerline of the disc. This eccentric design reduces friction between the disc and the seat, enhancing the valve’s service life and sealing performance. Additionally, the wafer-type connection allows the valve to be clamped directly into the pipeline, eliminating the need for additional flange connections, resulting in simplified installation.
Common materials include cast iron, carbon steel, stainless steel, and others. Suitable valve body materials can be selected based on different working conditions.
The rated pressure range of the double-eccentric wafer-type butterfly valve is typically between several tens of megapascals to several hundred megapascals, with rated diameters ranging from several millimeters to several meters.
The seat of the double-eccentric wafer-type butterfly valve typically utilizes wear-resistant and corrosion-resistant materials such as Polytetrafluoroethylene (PTFE) and Ethylene Propylene Diene Monomer (EPDM) to ensure excellent sealing performance.
